Input (Design File) |
Output (Laser Cut Part) |
- Cut Lines - Red, (0.1pt) RGB 255,0,0
- Line (Vector) Engraving - Blue (0.1pt) RGB 0,0,255
- Raster Engraving - Black lines and fills RGB 0,0,0

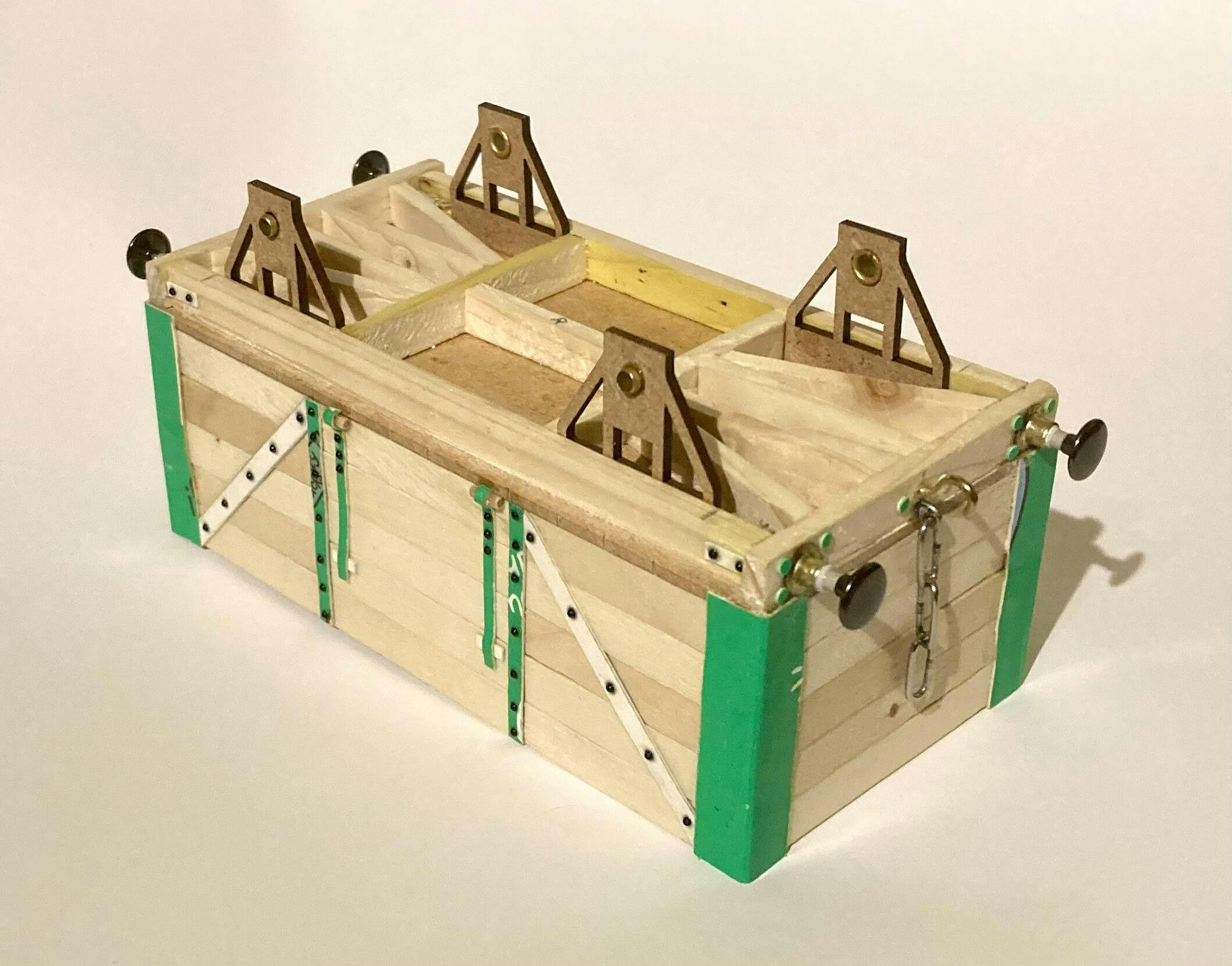

(Example shown is Birch Plywood)
Key Features
- Listing price includes material and laser cutting
- Material Type: MDF
- Thickness: 2mm, 4mm, and 6mm
- Sheet Size: 150mm x 150mm, 300mm x 300mm, 400mm x 600mm, and 600mm x 800mm
- To setup your design file please review guidelines here
Description

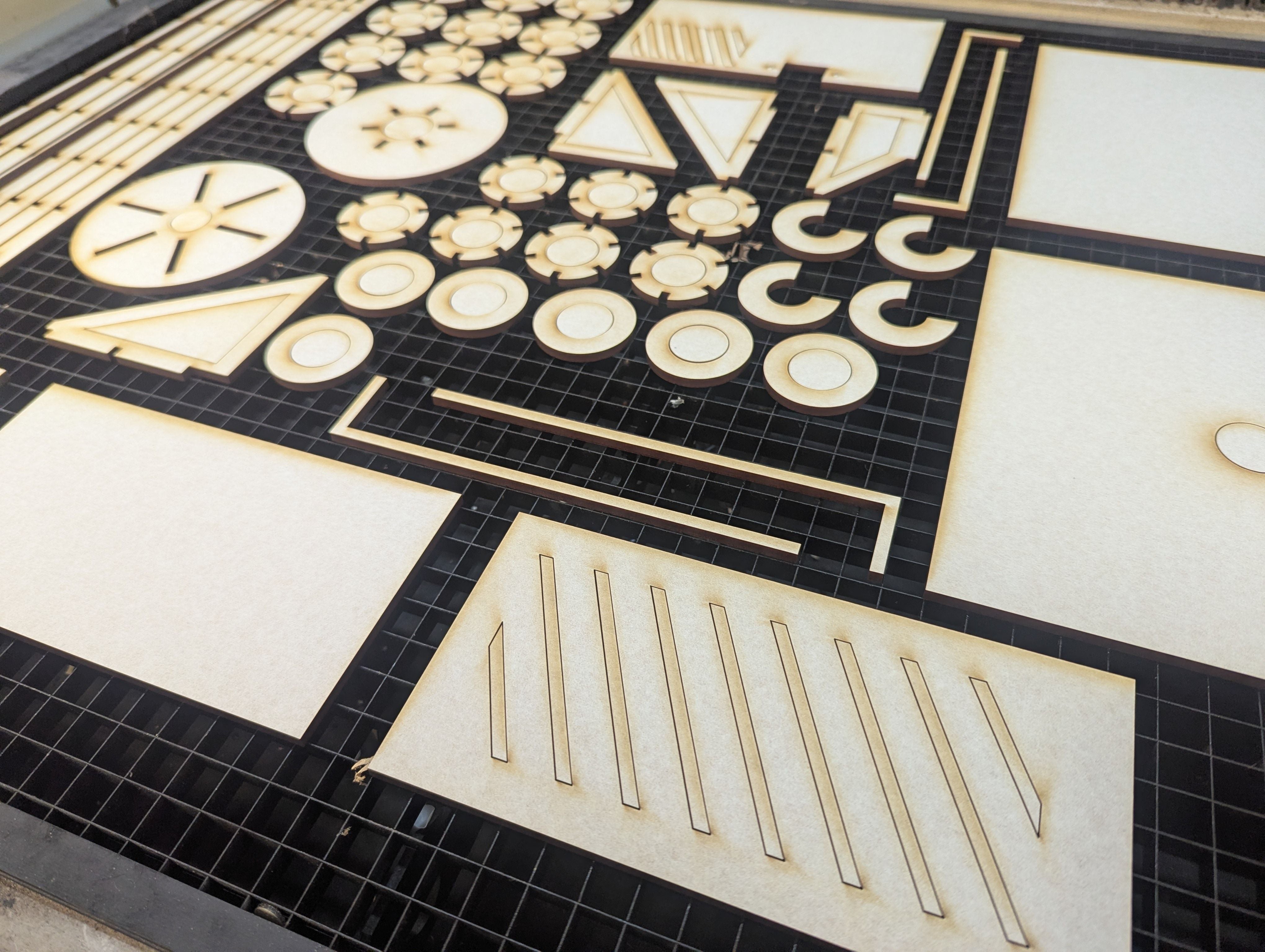

Medium-density fibreboard (MDF) is an engineered wood product formed by breaking down hardwood or softwood residuals into wood fibres, the fibres are combined with a wax and resin binder to form a rigid consistent board. MDF is dense, flat, stiff, has no knots and is easily machined. Its consistency makes it ideal for laser cutting and engraving.

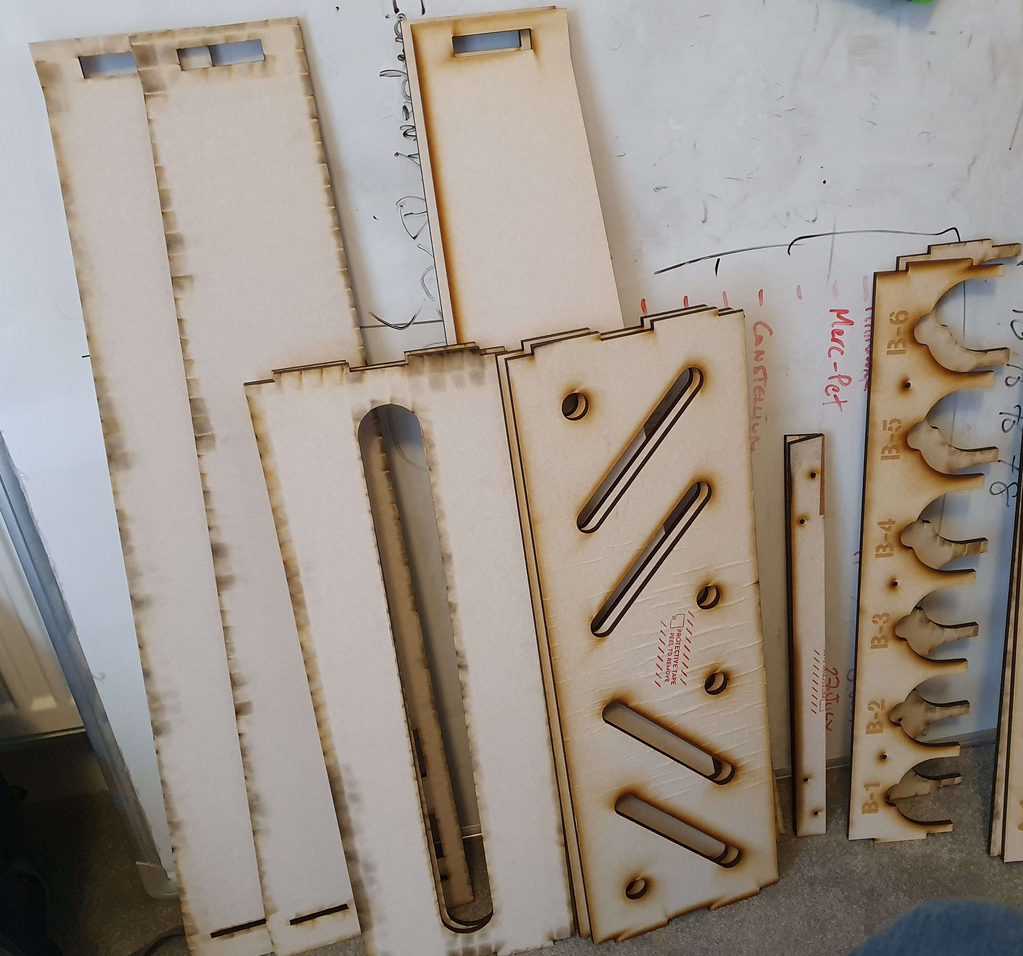

To minimise burn marks from laser cutting we can apply an optional protective masking tape, when applicable we keep this masking on for protection during shipping.
Cutting Offsets (kerf width / laser cut line width)
1-3mm thick material = approx. 0.15mm
4-6mm thick material = approx. 0.20mm
